A professional machine for commercial spaces that meets the demand for more sustainable, energy-efficient, user-friendly, and durable products.
In the 1960s, the creation of the E-61 group brought innovation to the world of espresso. It was an immediate success and made the system one of the most widely used in espresso history. Today, many manufacturers still use the E-61 or similar systems based on the same principle. However, as the market, professionals, needs, and the world evolve, we have the responsibility to offer new and improved technologies, reinventing while never compromising the quality of coffee.
We are constantly working to differentiate and evolve our machines. The Barista T reinvents tradition to be based on sustainable engineering and to be more energy efficient. T Technology combines multi-group technology with independent thermoblocks for coffee and a separate steam boiler.
Utilizing only stainless steel and 99% pure copper in the water circuit ensures purer, healthier beverages. With its swift availability, it allows delivering delicious, professional-grade espresso in just one minute.
- 1 year general labour warranty from purchase date
- 2 year parts warranty from purchase date
- 5 year Ascaso warranty on thermoblock + groups from purchase date
Design
-
![]()
High-Definition Touch Screen
High-definition touchscreen for easy adjustment of machine parameters
-
![]()
High-quality materials and components
Manufactured in stainless steel for maximum sturdiness. These materials ensure our coffee machines have a longer useful life.
-
![]()
Ergonomic filterholder handle
Thanks to its ergonomic design, it has a strong yet pleasant feel. It is tilted 10º for ease of use, while the horizontal placement of the filter holder in the delivery group ensures perfectly pressed coffee grounds.
-
![]()
Steam joystick
The stick facilitates use and improves control. A smooth, intuitive ‘natural’ movement makes it easy to use and control.
-
![]()
Steam and water wands
Made from AISI 316 stainless steel. The steam wand is anti-lime scale and remains cool to the touch, reducing the risk of contact burns.
Milk build-up is reduced to a minimum, making for easy cleaning.Steam outlets. Special design. The rounded edges, the smooth lines and four tangential outlets all mean creamy coffee every time. 4 outlets 1.2mm (1.6 optional).
-
![]()
Powerful professional steam
Emulsifies the milk to the ideal point for perfect cappuccinos. Our large-capacity boilers, with their incredible thickness, offer greater steam production stability.
-
![]()
Cup warmer
The large surface area keeps the cup at the ideal temperature for a perfect coffee.
-
![]()
Wire tray
Easy to clean with thin wire tray so as not to dirty the bottoms of the cups.
-
![]()
Back-lit button pad
Lit up buttons to easily see
-
![]()

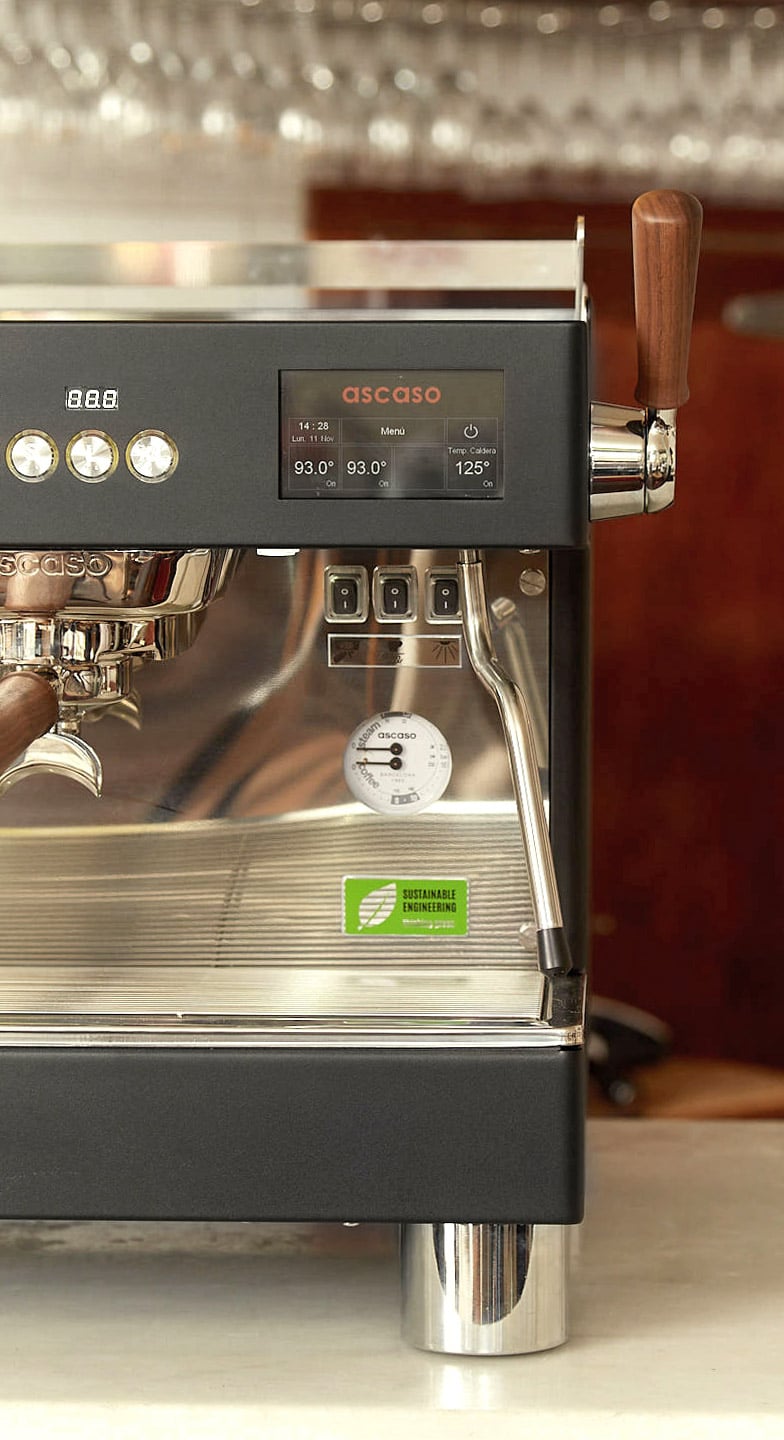

High-precision dual pressure gauge
Double reading gauge. It allows to control at the same time the boiler pressure and the pump pressure.
-
![]()
Work area light
Have a better view for extraction
-
![]()
Tamper
The Barista T includes a 100% professional tamper as standard, aesthetically very well-kept and with an excellent finish. Combination of stainless steel with walnut wood.
Laser engraving: ASCASO– BARCELONA.

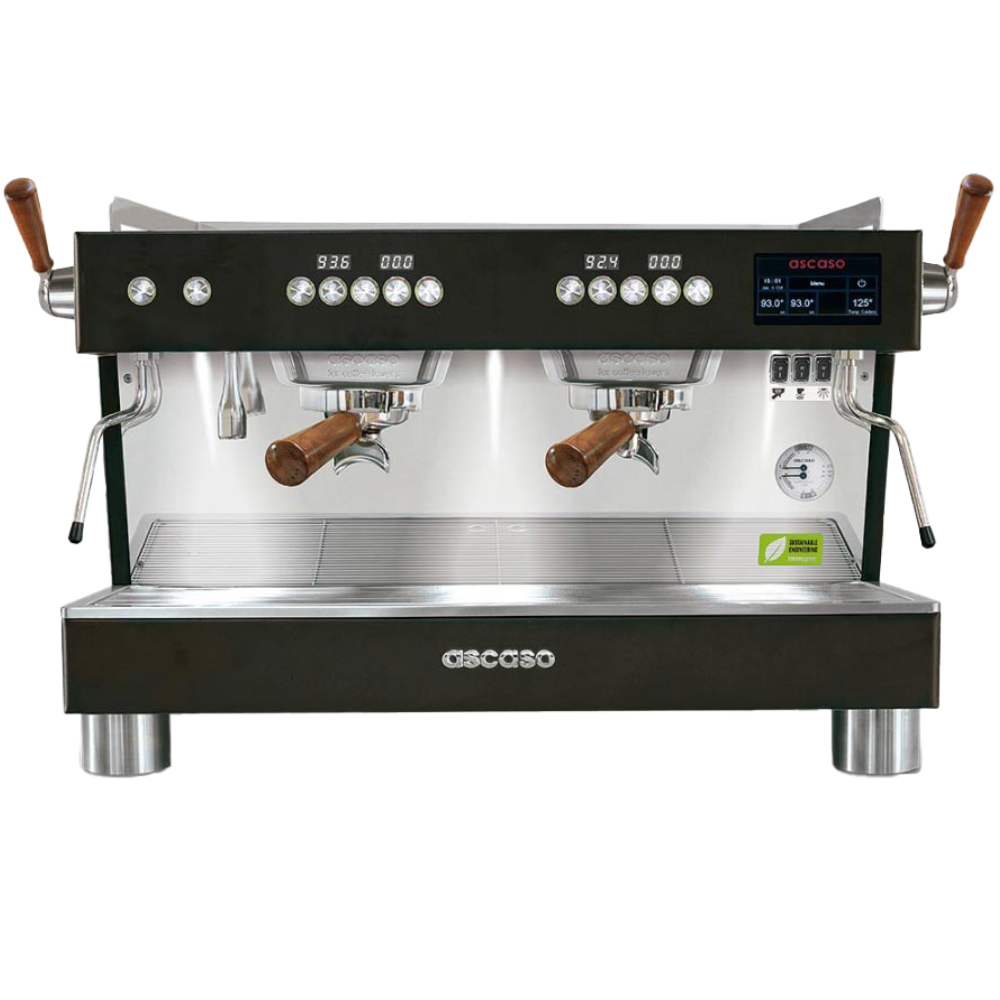

| Ascaso Barista T Plus 2024 | 2 Group |
|---|---|
| Dimensions (mm) | 700/475/535 |
| Boiler Power (230V) | 3500W 50-60Hz |
| Coffee Groups Power (W) | 1000 x 2 |
| Weight (lbs) | 157 |
| Boiler Capacity (L) | 8 |
| Steam Joystick | 2 |
| Separate hot water with solenoid | Anti-splash, 2 doses |
| Dynamic Preheating | √ |
| Adjustable Feet | Chromed, large diameter |
| Pump/Boiler pressure double gauge | Coffee / boiler |
| Rotary pump motor (200L) | √ |
| Filterholders (1 spout/2 spout) | 1/2 |
| 4.2" LCD display | √ |
| Digital Multifunction Display | √ |
| PID Temperature | √ |
| Volumetric Dosing | 4 Programmable Doses |
| Barista Lights | √ |
| Heating Element In Coffee Groups | √ |
| Coffee temperature PID Control | 80° C to 110°C in 0.1°C increments |
| Steam temperature PID Control | 110° C to 165°C in 1°C increments | Programmable Pre-infusion | √ |
| Insulated Coffee Groups | √ |
| Insulated Steam Boiler | √ |
| Insulated Tubes | √ |
| Shot Timer | √ |
| Statistics | √ |
| App Connectivity (Android) | √ |
| Thermal Stabilityt | +/-0.5ºC |
| Cool touch steam wand | 2x 12mm, double wall stainless steel |
| Programmable stand-by | √ |
| Active cup warmer | √ |
| Wood handles | Walnut | Stainless Steel Wire Tray | √ | Illuminated Back Panel | √ | Housing Material | √ |
| Power Guard System | √ |
| Max Cup Height | 12 cm |
| Accessories | |
|---|---|
| Stainless steel, single spout portafilter | 1 (walnut handle) |
| Stainless steel, double spout portafilter | 2 (walnut handle) |
| Stainless steel, bottomless portafilter | x |
| 7gr Stainless steel basket (1 coffee) | 1 (competition) |
| 14gr Stainless steel basket (2 coffees) | 2 (competition) |
| 18gr Stainless steel basket (2 coffees) | 2 (competition) |
| 21gr Stainless steel basket (3 coffees) | x |
| Blind basket | 1 |
| Portafilter gasket | Silicone |
| Stainless steel shower | 200 µm, competition shower |
