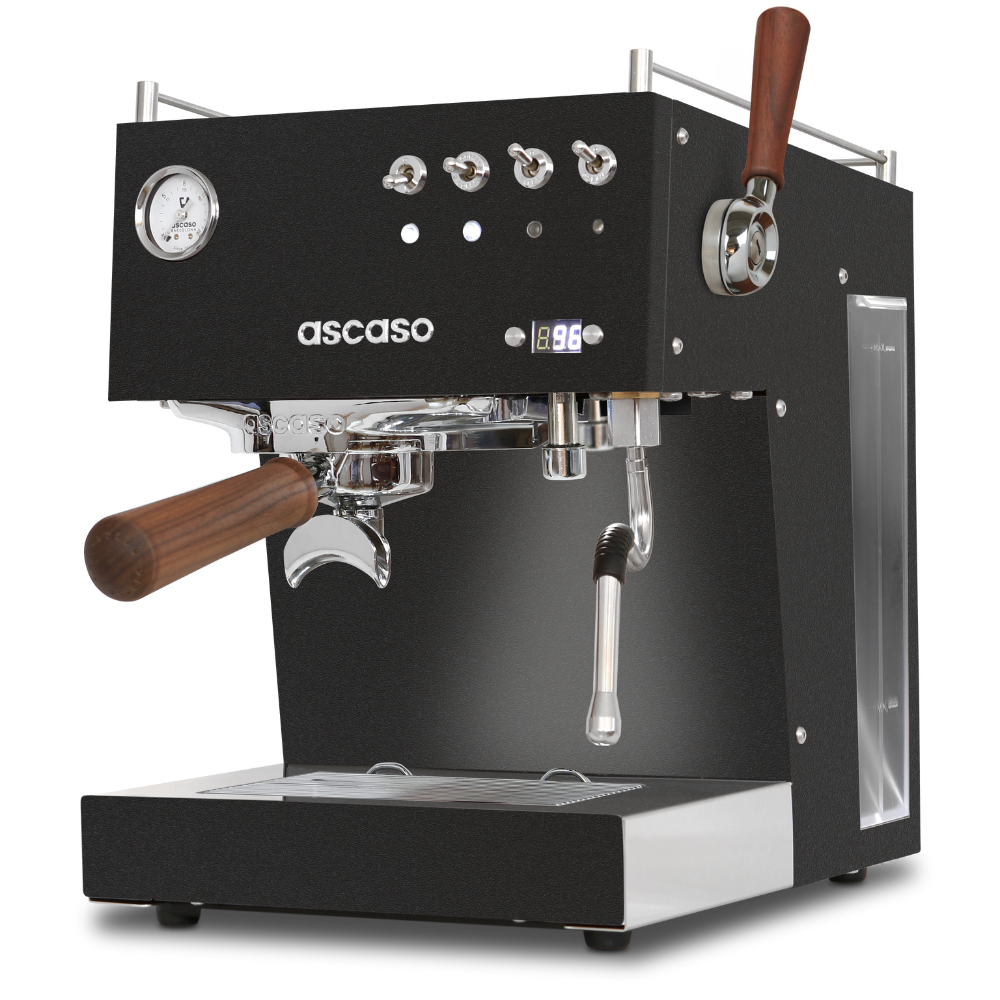

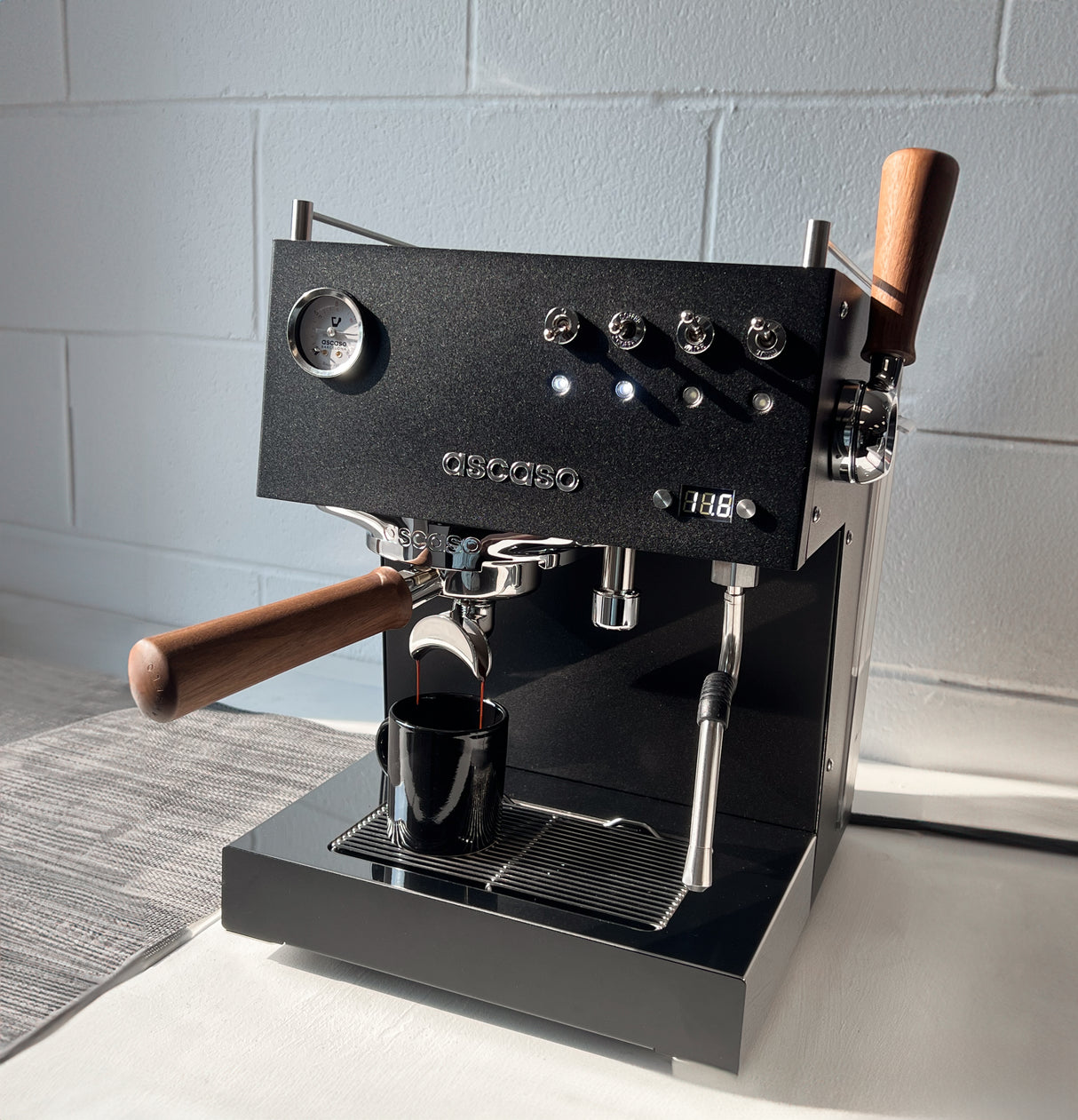

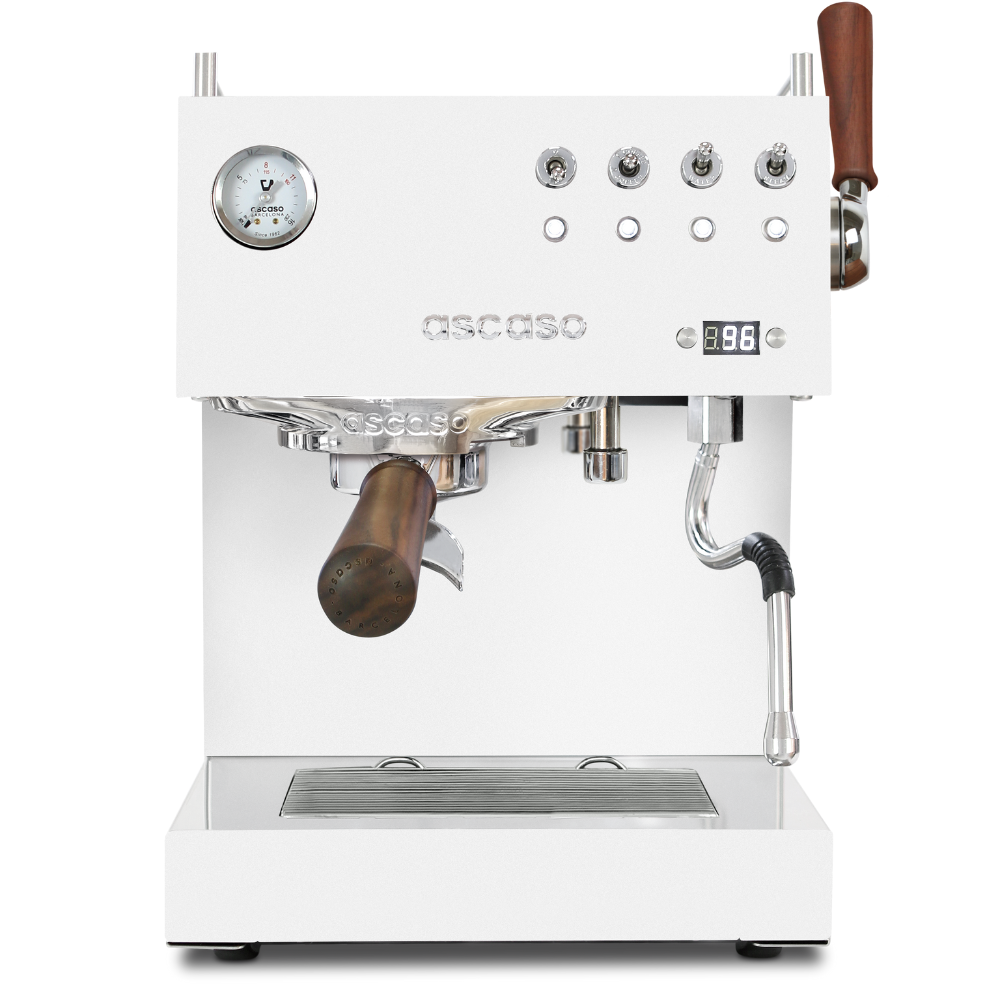

STEEL SERIES
The STEEL range goes one step further and transcends the Home use. It is a semi-professional coffee machine for home, offices, and even the Hospitality channel.
DUO – a thermoblock for coffee and an independent thermoblock for steam.
It was designed by the Ascaso Factory engineering team in its UNO and DUO versions and it is offered in a robust industrial bodywork that meets the requirements of the expert user. It is manufactured with the highest quality materials (aluminum, stainless steel, brass), and a minimum use of plastic. The standard version is equipped with a Ø 58mm filter holder and electronic temperature control.
The PID version provides a completely professional performance: externally adjustable OPV and an external PID display for temperature setting, adjustable pre-infusion, stand-by option and much more. A professional machine at Home!
PLUS - joystick steam valve for a more ergonomic steaming experience
Note: now available with the 15-amp plug or 20 amp
Powerful Steam
Steam without boiler
-
Improves energy consumption. Reduced from 35% to 70%, according to EN60661 test.
-
Waiting time for activation 2 minutes. The steam unit is ready within 2 minutes after switching on. Once switched on, steam generation is instantaneous. A traditional boiler takes between 15 and 25 minutes from start-up.
-
Instantaneous regeneration time. Constant steam. A traditional boiler takes several minutes to recover if it has previously made steam, proportionally to its use. With Ascaso's system, the waiting time is zero. Throughout the process it does not lose steam, it is constant for 3 minutes (maximum established for system safety) and then recovers instantly.
- Clean water in every steam service (no water constantly overheated).
- 2 year general labour + parts from purchase date
- 5 year Ascaso warranty on thermoblock + groups
Features and Functionality
-
![]()
High-quality materials and components
Manufactured in stainless steel for maximum sturdiness. A wide range of possibilities that make this a truly professional machine in a domestic environment.
-
![]()
Special cappuccino steam wand
Stainless steel. Multidirectional to 360º. The wand is cold to the touch, reducing the risk of contact burns. Milk build-up is reduced to a minimum, making for easy cleaning.
-
![]()
Powerful steam/hot water
The new aluminium + stainless steel group guarantees continuous, unlimited steam. The life of the piece is now much longer thanks to the fact that the limescale does not build up on the stainless steel circuit.
-
![]()

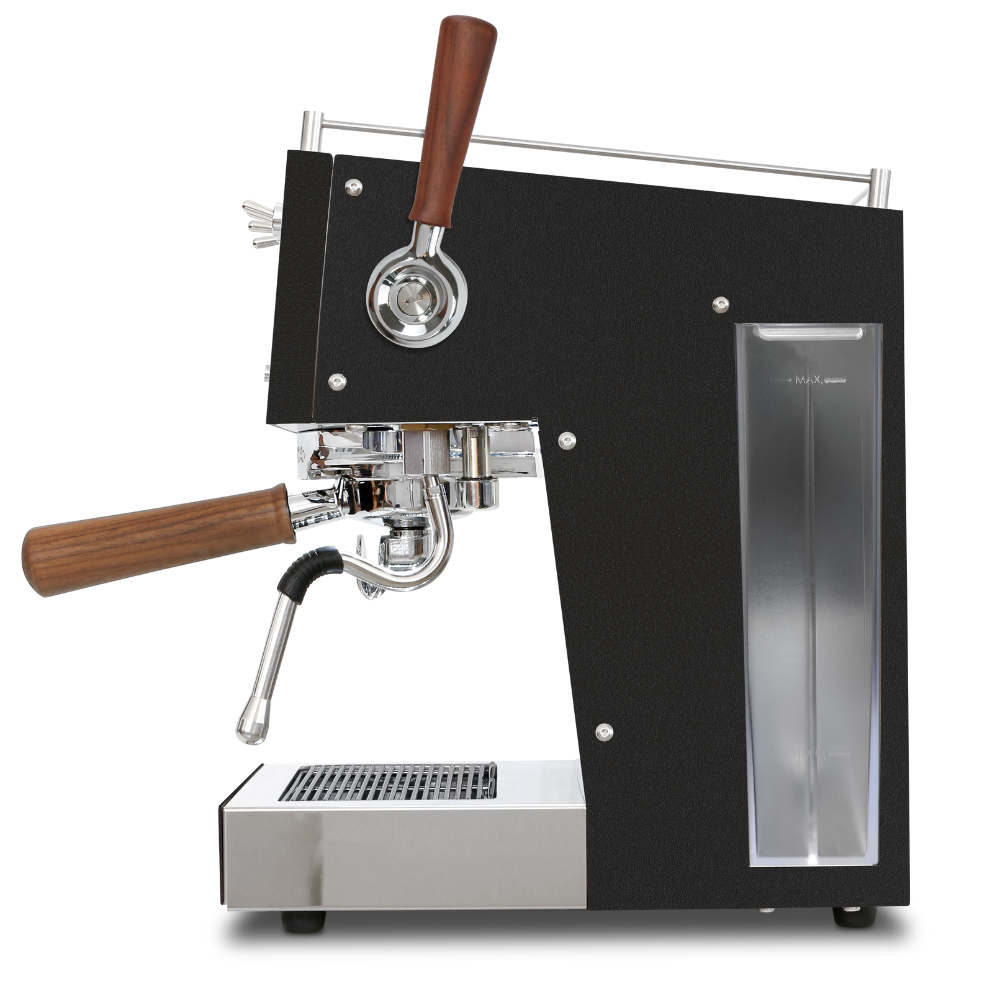

2-litre water reservoir
Can be removed for easy maintenance, cleaning and visual access, allowing the user to quickly check the amount of water in the chamber. The reservoir can be filled with the coffee machine in operation. BPA – free.
-
![]()
Cup warmer
Emulating professional coffee bar machines, the upper part features a surface that keeps cups warm, ensuring that coffee remains at its optimum temperature.
Large area – 270 mm x 315 mm. 100% usable (Side reservoir)
-
![]()
Metal switches
The high quality of the machine makes it a pleasure to use. Emphasises the industrial look. LEDs.
-
![]()
Pressure gauge
Along with the PID temperature control, this enables complete control of the machine.
-
![]()
Steel DUO PLUS Features
DUO PLUS Accessories
-
![]()
Stainless steel coffee tamper
A standard accessory of the highest quality and finish.
-
![]()
Two steam tips (1 and 3 holes)
1 hole (Ø 01mm)
3 holes (Ø 0,75mm)
In order to adjust the machine to every need.
-
![]()
Two complete filterholders
1 and 2 coffees. Olive Wood.
-
![]()
Variety of Filters
7gr, 14g, 18gr, 21gr and Blind.
DUO PLUS Features
-
![]()
Food Grade Silicone Gasket
Material: Silicone. Can withstand temperatures of up to 100º. Our tests show that they have double the normal lifespan of standard high-quality rubber seal rings. Food safe material. In green. Odorless and tasteless.
Design: Specially designed rubber seal rings. Thick and flexible. The silicone makes engaging the portafilter easier thus less effort and strain on your wrists.
-
![]()
Competition shower
AISI 304 stainless steel. Integrated membrane, completely smooth surface avoiding coffee residue deposits, which increases its useful life and facilitates cleaning.
Provides uniform water distribution, improving extractions.
98 holes Ø3mm.
-
![]()
Stainless steel tap
-
![]()
Wire stainless steel tray
New wire tray in stainless steel. Removable for easy cleaning.
-
![]()
Joystick steam valve
We propose a professional and more ergonomic solution adapted to Home use.
It is easier to use and improves control capability. A “natural”, smooth and intuitive movement.Steam generation is automatic. The "lock" function allows tea to be permanently brewed.
-
![]()
-
![]()
-
![]()
| Steel DUO PLUS | |
|---|---|
| Dimensions (mm) | 270 x 360 x 315 |
| Power (W) | 2100 |
| Voltage (V) | 120 |
| Weight (kg) | 15 (34lbs) |
| Water Capacity (L) | 2 |
| Independent coffee/steam group | Yes |
| Steam wand | Inox. 360º. Heat resistant ø10mm |
| Body | Metal |
| Filterholder | Stainless Steel ø58mm |
| Pump Pressure (atm) | Regulable by OPV |
| Coffee Thermostat | Regulable by PID |
| Steam Thermostat) | Regulable by PID |
| Manometer | √ |
| Active Cup Warmer | √ |
| PID Control | √ |
| Volumetric Control | √ |
| OPV Pressure Control | √ |
| Group Thermal Cover | √ |
| Wooden Handles | √ |
| Joystick Steam Valve | √ |
| Food Grade Silicone Filterholder Gasket | √ |
| Competition Shower | √ |
| Stainless Steel Tamper | √ |
| Two Steam Tips ( 1 and 3 holes) | √ |
| Two Filterholders (2 coffees & bottomless) | √ |
| Stainless Steel Tap | √ |
| Wire Stainless Steel Tray | √ |
